Intrinsically Safe Circuit Pairs Shield Control Cable

Standards implemented

It is manufactured according to Q/HHDO5 standard(the same as BS5308-86)

Application

The cable the -following features is low capacitance low inductance excellent shield and interference rejection.So that It is superior in flame-proof than common computer cable and control cable. It is used as transmission cable in circuit of distributing system and automatic examine & con-trol system which should be flame-proofed.

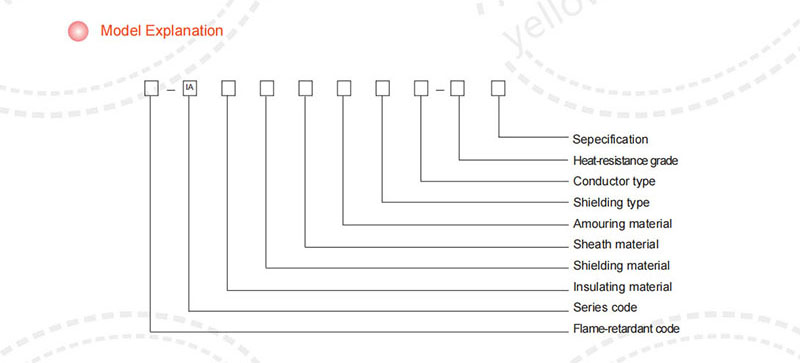

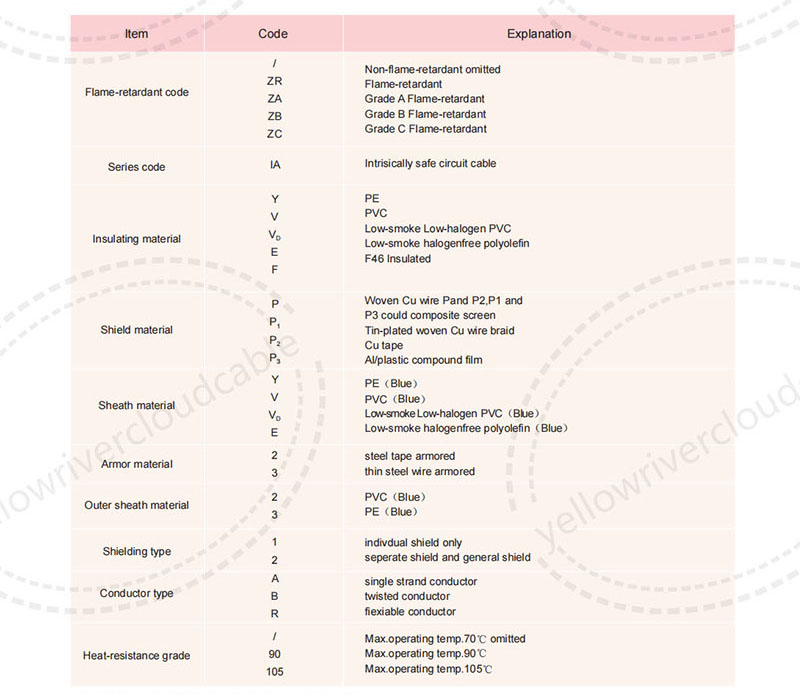

Model Explanation

E.G.1: PE insulated PVC sheathed 12 pairs 0.75mm2 two core groups intrincially safe control cable are show as following:

(1) Cu tape woven Cu wire seperate shielded(Type B core): IAYP2PV-1B 12×2×0.75

(2) Cu tape woven Cu wire seperate shielded and general shield

(Type R core): IAYP2PV-2R 12×2×0.75

(3) Cu tape woven Cu wire seperate shielded steel tape armored

(Type A core): IAYP-PV22-1A 12×2×0.75

(4) Cu tape woven Cu wire seperate shielded steel wire armored

(Type B core): IAYP2PV3z-1B 12×2×0.75

(5) Al/plastic compound film Tin-plated woven Cu wire seperate shield:(Type A core): IAYP3P1V-1A 12×2×0.75

E.G.2: To replace the "Y"by"V"of e.g.1for "PVC"insulated and sheathed 12 pairs 0.75mm2 two core groups cable.

For example: Cu tape woven Cu wire seperate shield is show as: IAVP, PV-1 12×2×0.75

if Tin-plated core intrinsically safe cable is required just add"X"following model: IAVP2PVX-1 12×2×0.75

①Rated voltage:Uo/U:300/500V

②Max.operating temp:s70℃ for common model≤105℃ for the model with"105"

③Min/embient temp:fixed instaltion-40℃.non-fixed installtion-15℃.

④Min.bending radius:non-armored cable≥6 times outer dia of cable armored cable≥12 times outer dia of cable.

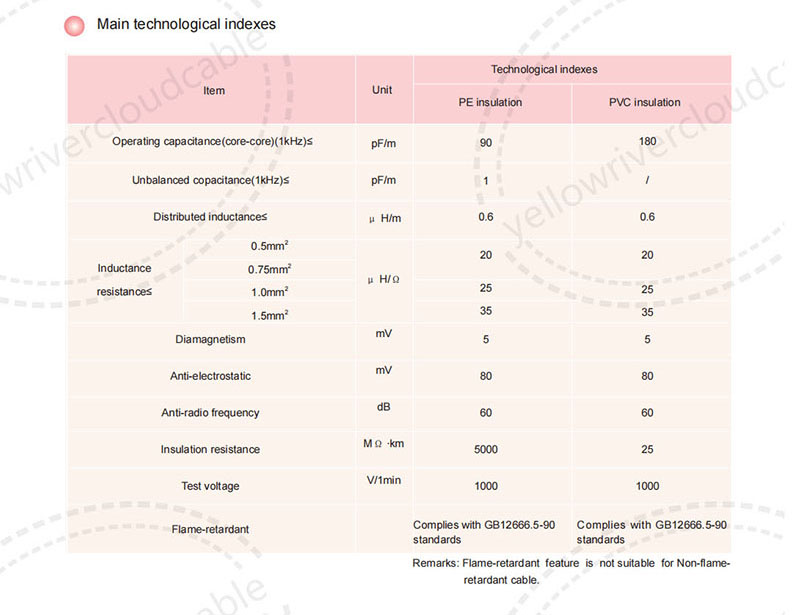

Main technological indexes
